Concrete Core Drilling: The Definitive Guide to Accurate and Structural-Safe Drilling

Concrete core drilling is a professional drilling method used to create clean, perfectly round holes in concrete and reinforced concrete without cracking, chipping, or weakening the surrounding structure. Instead of using impact or hammer force, concrete core drilling relies on diamond-embedded core bits that grind through concrete with precision. This process removes a solid cylindrical section, known as a core, leaving smooth, exact-diameter openings.

Concrete core drilling is widely used in residential, commercial, industrial, and civil construction projects. It is the preferred solution for plumbing, electrical, HVAC, fire protection, anchoring, and structural modifications where accuracy, safety, and structural integrity are critical.

What Is Concrete Core Drilling?

Concrete core drilling is a controlled cutting process that uses a rotating diamond core bit powered by a high-torque drill motor. The diamond segments on the bit cut through concrete gradually instead of fracturing it. As drilling progresses, the bit extracts a solid core, producing a precise hole with clean edges.

This method is especially effective for reinforced concrete because diamond core bits can cut through steel rebar without damaging the surrounding concrete. Concrete core drilling is commonly used in both new construction and existing structures where vibration and cracking must be avoided.

How Concrete Core Drilling Works

Concrete core drilling works through continuous rotation and steady pressure. The drill motor spins the core bit at a controlled speed while the diamond segments grind through concrete aggregates and cement paste. This gradual cutting action minimizes vibration and eliminates shock to the structure.

Most concrete core drilling applications use water during the drilling process. Wet drilling cools the bit, reduces friction, suppresses dust, and flushes debris from the hole. This results in faster drilling, smoother finishes, longer bit life, and safer jobsite conditions.

Once drilling is complete, the cylindrical core is removed, leaving a smooth, professional-grade opening.

Types of Concrete Core Drilling

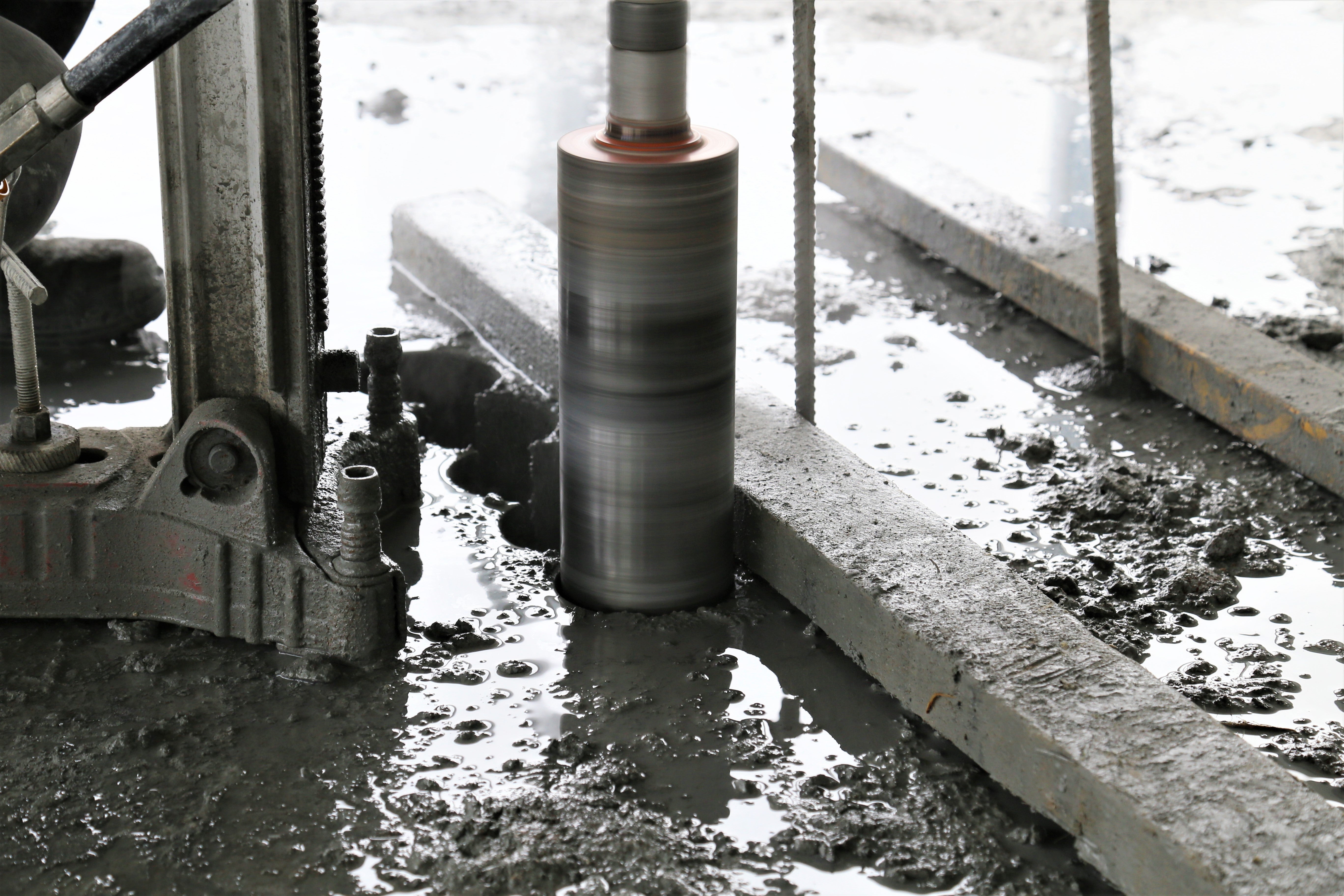

Wet Concrete Core Drilling

Wet concrete core drilling is the most common and effective method. Water is supplied directly to the cutting surface to cool the diamond segments and control dust. This method is ideal for reinforced concrete, thick slabs, foundations, walls, and structural drilling.

Dry Concrete Core Drilling

Dry concrete core drilling is used when water is not available or allowed. It is typically limited to lighter concrete or masonry materials. Specialized dry core bits are designed to manage heat through ventilation and segmented designs.

Handheld Concrete Core Drilling

Handheld core drilling is used for smaller-diameter holes and shallow depths. This method is common in plumbing, electrical, and HVAC installations where mobility and quick setup are required.

Rig-Mounted Concrete Core Drilling

Rig-mounted concrete core drilling provides maximum accuracy and stability. The drill is anchored to the surface using bolts or vacuum bases, allowing for straight, deep, and large-diameter holes. This method is preferred for structural and commercial applications.

Concrete Core Drilling in Reinforced Concrete

One of the key advantages of concrete core drilling is its ability to safely penetrate reinforced concrete. Diamond core bits are designed to grind through both concrete and embedded steel rebar without causing cracks or weakening the structure.

This makes concrete core drilling the safest method for creating penetrations in load-bearing walls, columns, bridge decks, slabs, and foundations when properly planned and scanned.

Materials Suitable for Concrete Core Drilling

Concrete core drilling can be performed on a wide range of materials, including:

• Reinforced concrete with steel rebar

• Standard poured concrete

• Precast concrete panels

• Structural slabs and foundations

• Concrete block and masonry

• Sidewalks, driveways, and pavements

With the correct equipment and preparation, concrete core drilling can be safely performed in nearly any construction environment.

Common Applications of Concrete Core Drilling

Concrete core drilling is used across many industries and project types. In construction, it is essential for creating openings for plumbing pipes, electrical conduits, HVAC ducting, and fire sprinkler systems.

Mechanical and industrial contractors use concrete core drilling for equipment mounting, ventilation penetrations, and facility upgrades. In civil engineering and infrastructure projects, it is used for bridge decks, roadway installations, utility access points, and anchoring systems.

Because the process produces minimal vibration, concrete core drilling is ideal for hospitals, schools, data centers, laboratories, and occupied buildings.

Selecting the Right Equipment for Concrete Core Drilling

Choosing the right equipment is critical for successful concrete core drilling. Hole diameter and depth determine the size of the core bit and the power required from the drill. Larger holes and deeper penetrations require higher torque and rigid mounting systems.

The type of concrete also plays an important role. Reinforced concrete requires diamond bits capable of cutting steel, while softer concrete may require different segment bonding. Wet drilling is generally recommended for concrete due to improved cooling and dust suppression.

Proper anchoring or stable handheld control ensures straight holes, consistent accuracy, and reduced equipment strain.

Advantages of Concrete Core Drilling

Concrete core drilling offers several advantages over traditional drilling methods. Precision is one of the most significant benefits, as core drilling produces exact-diameter holes with smooth edges and professional finishes.

Low vibration protects surrounding concrete and prevents cracking, spalling, or structural damage. Dust control is another major advantage, especially with wet drilling, which improves safety and visibility.

Concrete core drilling is also efficient and repeatable, making it ideal for projects that require multiple penetrations with consistent results.

Safety Considerations for Concrete Core Drilling

Safety is a critical aspect of concrete core drilling. Before drilling begins, the concrete should be scanned to locate embedded utilities, electrical lines, rebar, or post-tension cables. Drilling into hidden obstructions can create serious safety hazards.

Operators should wear appropriate personal protective equipment, including eye protection, gloves, and hearing protection. Water flow must be properly controlled during wet drilling to prevent overheating and excessive bit wear.

Applying steady pressure and allowing the bit to cut naturally reduces the risk of equipment damage and ensures clean results.

Maintenance and Performance Longevity

Proper maintenance ensures reliable performance during concrete core drilling. After each use, equipment should be cleaned to remove slurry, dust, and debris. Allowing buildup to remain can reduce efficiency and accelerate wear.

Diamond core bits should be inspected regularly and replaced when cutting performance declines. Correct drilling speed, adequate water flow, and controlled pressure significantly extend bit life and maintain drilling quality.

Environmental and Structural Benefits

Concrete core drilling is one of the most structurally responsible drilling methods available. Because it removes material precisely, it produces less waste and minimizes damage to surrounding concrete.

Low vibration and reduced noise make it suitable for urban environments and sensitive facilities. Clean cuts also reduce the need for repairs or reinforcement after drilling, saving time and resources.

Concrete Core Drilling FAQs

What is concrete core drilling used for?
Concrete core drilling is used to create precise, round holes in concrete for plumbing, electrical, HVAC, fire protection, and structural applications.

Can concrete core drilling cut through reinforced concrete?
Yes, diamond core drilling can safely cut through both concrete and embedded steel rebar.

Is wet concrete core drilling better than dry drilling?
Yes, wet drilling is preferred for concrete because it cools the bit, reduces dust, and extends tool life.

Does concrete core drilling damage structures?
No, it produces minimal vibration and stress, making it safe for existing structures.

What hole sizes can be achieved with concrete core drilling?
Concrete core drilling supports a wide range of hole sizes, from small conduit openings to large-diameter penetrations.

Is concrete core drilling safe for occupied buildings?
Yes, it is commonly used in hospitals, schools, and active facilities due to low noise and vibration.

How deep can concrete core drilling go?
With proper equipment, concrete core drilling can penetrate very thick slabs, walls, and foundations.

Should concrete be scanned before core drilling?
Yes, scanning is strongly recommended to locate rebar, utilities, and post-tension cables.

Concrete core drilling is the most precise, reliable, and structurally safe method for creating openings in concrete. Its clean cutting action, versatility, and low-impact performance make it an essential process in modern construction, infrastructure, and industrial projects.
